PRODUCT GROUP64906K
BSPP Female Swivel 60° Cone, Elbow 90°
ISO 8434-6
Rated working pressure: 6,000 PSI / 414 bar / 41.4 MPa*

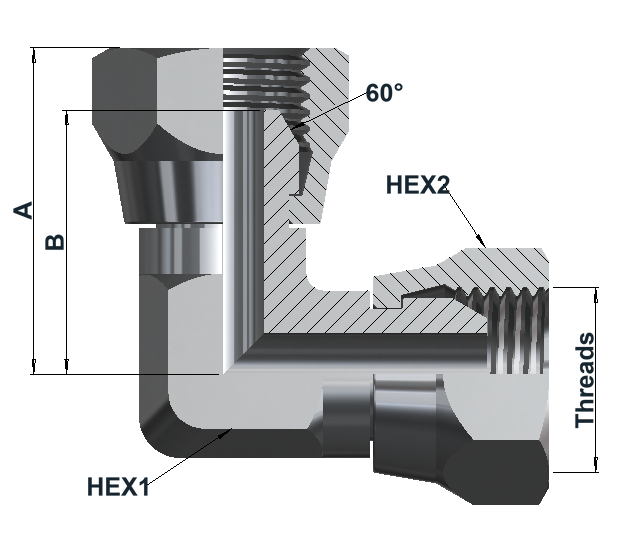

Dimensions & variants
Dimensions in mm
| Item number | BSPP Female 1 | BSPP Female 2 | A | B | Hex1 | Hex2 | Weight (kg) |
|---|---|---|---|---|---|---|---|
| 64900404316 | G 1/4" | G 1/4" | 33 | 26.5 | 16 | 19 | 0.085 |
| 64900606316 | G 3/8" | G 3/8" | 33 | 26.5 | 16 | 22 | 0.108 |
| 64900808316 | G 1/2" | G 1/2" | 38.5 | 31.5 | 20 | 27 | 0.187 |
| 64901212316 | G 3/4" | G 3/4" | 51.5 | 41.5 | 28 | 32 | 0.352 |
| 64901616316 | G 1" | G 1" | 57 | 47 | 34 | 41 | 0.640 |
| 64902020316 | G 1 1/4" | G 1 1/4" | 65 | 52.5 | 44 | 50 | |
| 64902424316 | G 1 1/2" | G 1 1/2" | 57 | 60 | 52 | 55 |
Article number structure
6490 | 04 | 04 | 316 | 6KSeries | BSPP female thread code 1 | BSPP female thread code 2 | Material | Pressure class
Product specifications
| End 1 — BSPP Female Swivel | End 2 — BSPP Female Swivel | General product information |
|---|---|---|
|
|
|
Technical info
Connections

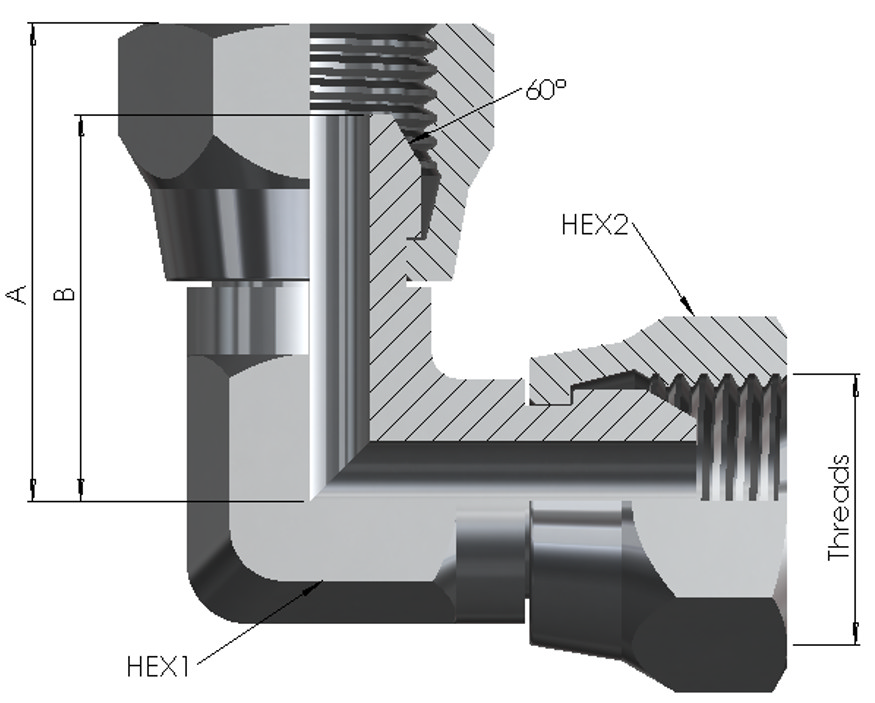

BSPP female swivel ends: 60° cone swivel connections to ISO 8434-6 with parallel G threads to ISO 228-1. 90° elbow configuration with identical connection size on both ends.
Working pressure basis*
The stated working pressure is based on Intermec's established design calculations, dimensional design criteria and more than 35 years of experience with high-pressure fittings in demanding offshore and oil & gas applications. Suitability depends on correct installation, mating connection, material and operating conditions.
