PRODUCT GROUP64006K
BSPP Female Swivel 60° Cone × BSPP Female Swivel 60° Cone
ISO 8434-6
Rated working pressure: 6,000 PSI / 414 bar / 41.4 MPa*

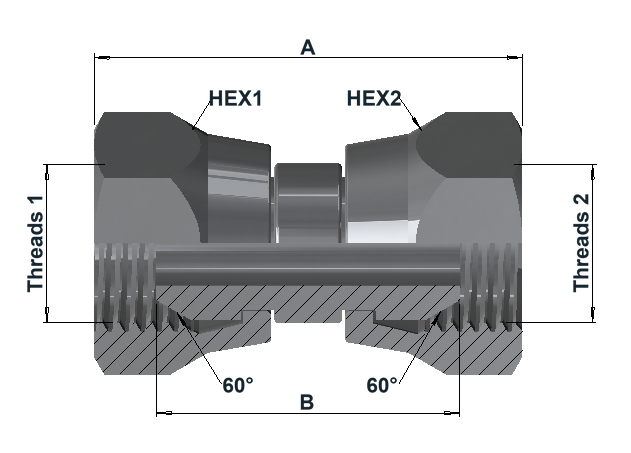

Dimensions & variants
Dimensions in mm
| Item number | BSPP Female 1 | BSPP Female 2 | A | B | Hex1 | Hex2 | Weight (kg) |
|---|---|---|---|---|---|---|---|
| 64000404316 | G 1/4" | G 1/4" | 37 | 24 | 19 | 19 | 0.038 |
| 64000406316 | G 1/4" | G 3/8" | 42.5 | 29.5 | 19 | 22 | 0.065 |
| 64000606316 | G 3/8" | G 3/8" | 46 | 33 | 22 | 22 | 0.081 |
| 64000608316 | G 3/8" | G 1/2" | 48.5 | 35 | 22 | 27 | 0.114 |
| 64000808316 | G 1/2" | G 1/2" | 50 | 36 | 27 | 27 | 0.127 |
| 64000812316 | G 1/2" | G 3/4" | 55 | 38 | 27 | 32 | 0.179 |
| 64001212316 | G 3/4" | G 3/4" | 58 | 38 | 32 | 32 | 0.181 |
| 64001216316 | G 3/4" | G 1" | 58 | 38 | 32 | 41 | 0.263 |
| 64001616316 | G 1" | G 1" | 58 | 38 | 41 | 41 | 0.282 |
| 64002020316 | G 1 1/4" | G 1 1/4" | 67 | 42 | 50 | 50 | |
| 64002424316 | G 1 1/2" | G 1 1/2" | 77 | 51 | 55 | 55 | |
| 64003232316 | G 2" | G 2" | 86 | 54 | 70 | 70 |
Article number structure
6400 | 04 | 06 | 316 | 6KSeries | BSPP female thread code 1 | BSPP female thread code 2 | Material | Pressure class
Product specifications
| End 1 — BSPP Female Swivel | End 2 — BSPP Female Swivel | General product information |
|---|---|---|
|
|
|
Technical info
Connections
BSPP female swivel sides: 60° cone swivel connections to ISO 8434-6 with parallel G threads to ISO 228-1.
Working pressure basis*
The stated working pressure is based on Intermec's established design calculations, dimensional design criteria and more than 35 years of experience with high-pressure fittings in demanding offshore and oil & gas applications. Suitability depends on correct installation, mating connection, material and operating conditions.
