PRODUCT GROUP640010K
BSPP Female Swivel 60° Cone × BSPP Female Swivel 60° Cone
ISO 8434-6
Rated working pressure: 10,000 PSI / 689 bar / 68.9 MPa*

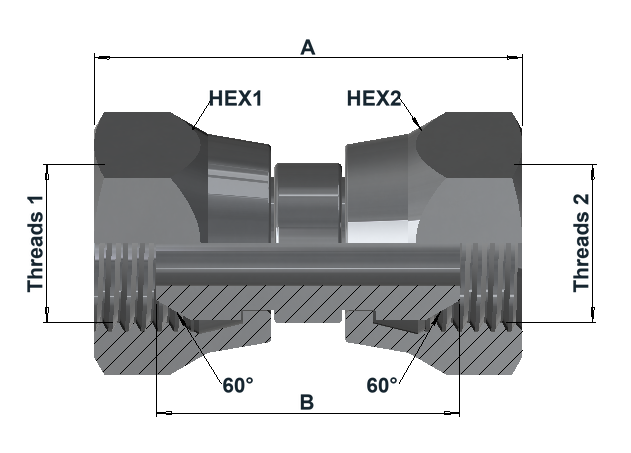

Dimensions & variants
Dimensions in mm
| Item number | BSPP Female 1 | BSPP Female 2 | A | B | Hex1 | Hex2 | Weight (kg) |
|---|---|---|---|---|---|---|---|
| 6400040431610K | G 1/4" | G 1/4" | 37 | 24 | 19 | 19 | 0.038 |
| 6400060631610K | G 3/8" | G 3/8" | 46 | 33 | 22 | 22 | 0.081 |
| 6400080831610K | G 1/2" | G 1/2" | 50 | 36 | 32 | 32 | 0.214 |
| 6400121231610K | G 3/4" | G 3/4" | 58 | 38 | 36 | 36 | 0.225 |
| 6400161631610K | G 1" | G 1" | 58 | 38 | 46 | 46 | 0.320 |
Article number structure
6400 | 04 | 04 | 316 | 10KSeries | BSPP female thread code 1 | BSPP female thread code 2 | Material | Pressure class
Product specifications
| End 1 — BSPP Female Swivel | End 2 — BSPP Female Swivel | General product information |
|---|---|---|
|
|
|
Technical info
Connections
BSPP female swivel sides: 60° cone swivel connections to ISO 8434-6 with parallel G threads to ISO 228-1.
Working pressure basis*
The stated working pressure is based on Intermec's established design calculations, dimensional design criteria and more than 35 years of experience with high-pressure fittings in demanding offshore and oil & gas applications. Suitability depends on correct installation, mating connection, material and operating conditions.
