PRODUCT GROUP63906K
BSPP Female Fixed, Elbow 90°
ISO 1179-2
Rated working pressure: 6,000 PSI / 414 bar / 41.4 MPa*

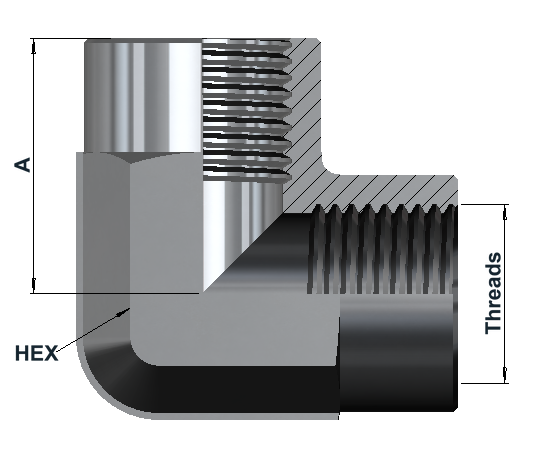

Dimensions & variants
Dimensions in mm
| Item number | BSPP Female Fixed 1 | BSPP Female Fixed 2 | A | Hex | Weight (kg) |
|---|---|---|---|---|---|
| 63900202316 | G 1/8" | G 1/8" | 22 | 16 | 0.051 |
| 63900404316 | G 1/4" | G 1/4" | 24 | 20 | 0.080 |
| 63900606316 | G 3/8" | G 3/8" | 26 | 23 | 0.104 |
| 63900808316 | G 1/2" | G 1/2" | 31 | 28 | 0.171 |
| 63901212316 | G 3/4" | G 3/4" | 37 | 34 | 0.278 |
| 63901616316 | G 1" | G 1" | 42 | 44 | 0.565 |
| 63902020316 | G 1 1/4" | G 1 1/4" | 49 | 52 | 0.779 |
| 63902424316 | G 1 1/2" | G 1 1/2" | 60 | 62 | 1.500 |
Article number structure
6390 | 04 | 04 | 316 | 6KSeries | BSPP Female Fixed thread code 1 | BSPP Female Fixed thread code 2 | Material | Pressure class
Product specifications
| End 1 — BSPP Female Fixed | End 2 — BSPP Female Fixed | General product information |
|---|---|---|
|
|
|
Technical info
Connections
BSPP Female Fixed ends: Parallel G threads to ISO 228-1 with sealing interfaces to ISO 1179-2. 90° elbow configuration with identical connection size on both ends.
Working pressure basis*
The stated working pressure is based on Intermec's established design calculations, dimensional design criteria and more than 35 years of experience with high-pressure fittings in demanding offshore and oil & gas applications. Suitability depends on correct installation, mating connection, material and operating conditions.
