PRODUCT GROUP63006K
BSPP Female Fixed × BSPP Female Fixed
ISO 1179-2
Rated working pressure: 6,000 PSI / 414 bar / 41.4 MPa*

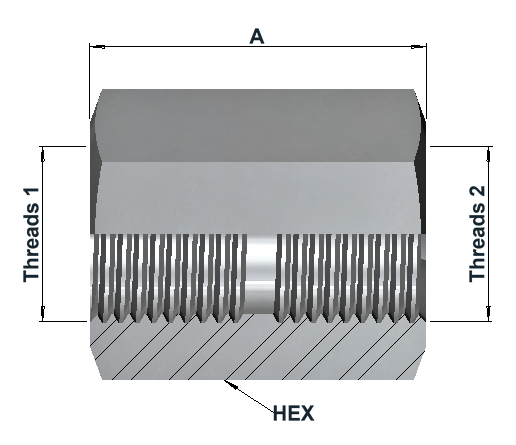

Dimensions & variants
Dimensions in mm
| Item number | BSPP Female Fixed 1 | BSPP Female Fixed 2 | A | Hex | Weight (kg) |
|---|---|---|---|---|---|
| 63000202316 | G 1/8" | G 1/8" | 26 | 14 | 0.021 |
| 63000204316 | G 1/8" | G 1/4" | 30 | 19 | 0.051 |
| 63000404316 | G 1/4" | G 1/4" | 30 | 19 | 0.044 |
| 63000406316 | G 1/4" | G 3/8" | 34 | 22 | 0.068 |
| 63000408316 | G 1/4" | G 1/2" | 37 | 30 | 0.162 |
| 63000606316 | G 3/8" | G 3/8" | 37 | 22 | 0.064 |
| 63000608316 | G 3/8" | G 1/2" | 40 | 30 | 0.163 |
| 63000808316 | G 1/2" | G 1/2" | 40 | 30 | 0.144 |
| 63000812316 | G 1/2" | G 3/4" | 45 | 36 | 0.252 |
| 63000816316 | G 1/2" | G 1" | 48 | 46 | 0.478 |
| 63001212316 | G 3/4" | G 3/4" | 45 | 36 | 0.217 |
| 63001216316 | G 3/4" | G 1" | 50 | 46 | 0.420 |
| 63001616316 | G 1" | G 1" | 50 | 46 | 0.406 |
| 63001620316 | G 1" | G 1 1/4" | 55 | 55 | 0.680 |
| 63001624316 | G 1" | G 1 1/2" | 55 | 60 | 0.790 |
| 63002020316 | G 1 1/4" | G 1 1/4" | 55 | 55 | 0.572 |
| 63002024316 | G 1 1/4" | G 1 1/2" | 58 | 60 | 0.718 |
| 63002424316 | G 1 1/2" | G 1 1/2" | 58 | 60 | 0.650 |
| 63002432316 | G 1 1/2" | G 2" | 64 | 75 | 1.180 |
| 63003232316 | G 2" | G 2" | 64 | 75 | 1.056 |
Article number structure
6300 | 04 | 06 | 316 | 6KSeries | BSPP Female Fixed thread code 1 | BSPP Female Fixed thread code 2 | Material | Pressure class
Product specifications
| End 1 — BSPP Female Fixed | End 2 — BSPP Female Fixed | General product information |
|---|---|---|
|
|
|
Technical info
Connections
BSPP Female Fixed sides: Parallel G threads to ISO 228-1 with sealing interfaces to ISO 1179-2.
Working pressure basis*
The stated working pressure is based on Intermec's established design calculations, dimensional design criteria and more than 35 years of experience with high-pressure fittings in demanding offshore and oil & gas applications. Suitability depends on correct installation, mating connection, material and operating conditions.
