PRODUCT GROUP630015K
BSPP Female Fixed × BSPP Female Fixed
ISO 1179-2
Rated working pressure: 15,000 PSI / 1,034 bar / 103.4 MPa*

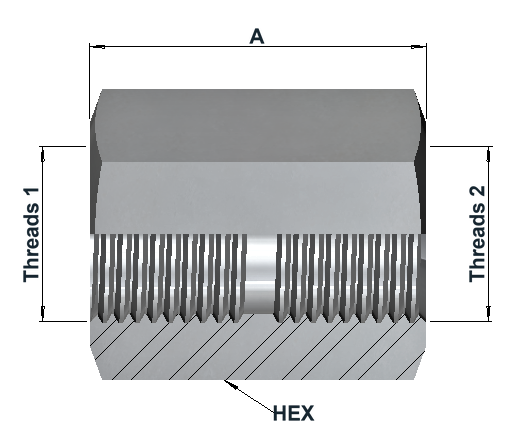

Dimensions & variants
Dimensions in mm
| Item number | BSPP Female Fixed 1 | BSPP Female Fixed 2 | A | Hex | Weight (kg) |
|---|---|---|---|---|---|
| 6300040431615K | G 1/4" | G 1/4" | 30 | 24 | 0.089 |
| 6300040631615K | G 1/4" | G 3/8" | 34 | 27 | 0.126 |
| 6300040831615K | G 1/4" | G 1/2" | 37 | 36 | 0.259 |
| 6300060631615K | G 3/8" | G 3/8" | 37 | 27 | 0.126 |
| 6300060831615K | G 3/8" | G 1/2" | 40 | 36 | 0.272 |
| 6300080831615K | G 1/2" | G 1/2" | 40 | 36 | 0.253 |
Article number structure
6300 | 04 | 06 | 316 | 15KSeries | BSPP Female Fixed thread code 1 | BSPP Female Fixed thread code 2 | Material | Pressure class
Product specifications
| End 1 — BSPP Female Fixed | End 2 — BSPP Female Fixed | General product information |
|---|---|---|
|
|
|
Technical info
Connections
BSPP Female Fixed side 1: Parallel G thread to ISO 228-1.
BSPP Female Fixed side 2: Parallel G thread to ISO 228-1.
Working pressure basis*
The stated working pressure is based on Intermec's established design calculations, dimensional design criteria and more than 35 years of experience with high-pressure fittings in demanding offshore and oil & gas applications. Suitability depends on correct installation, mating connection, material and operating conditions.
